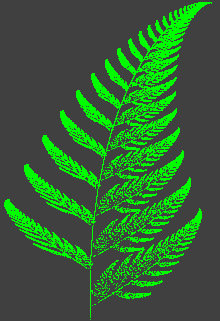

     Home Search   What's New Index Books Links Q & A Newsletter Banners   Feedback Tip Jar      MSDN Visual Basic Community  Title Draw the Barnsley's Fern fractal in VB .NET This example shows how to draw the Barnsley's Fern fractal in VB .NET. Barnsley's Fern, fractal, iterated functions, iterated function system, VB.NET Graphics, VB.NET See Barnsley's Fern by Eric W. Weisstein from MathWorld, a Wolfram Web Resource.

The program starts from a random point. At each step, it randomly picks a function (with non-uniform probability) and applies the function to the point to find the next point. It then plots that point.

Each function has the form:

```    X(n+1) = A * X(n) + B * Y(n) + C
Y(n+1) = D * X(n) + E * Y(n) + F```

The Form_Load event handler initializes the parameters for each function in the m_Func array, and the probability for each function. It also sets the color to be used when plotting a point found by each function. Using different colors is interesting and gives you some sense of what each set of functions does but the final result here is drawn in green.

```Private m_Prob(3) As Single
Private m_Func(3, 1, 1) As Single
Private m_Plus(3, 1) As Single
Private m_Clr(3) As Color

Private Sub Form1_Load(ByVal sender As System.Object, ByVal _
' Initialize the fern functions.
m_Clr(0) = Color.Red
m_Prob(0) = 0.01
m_Func(0, 0, 0) = 0
m_Func(0, 0, 1) = 0
m_Func(0, 1, 0) = 0
m_Func(0, 1, 1) = 0.16
m_Plus(0, 0) = 0
m_Plus(0, 1) = 0

m_Clr(1) = Color.Green
m_Prob(1) = 0.85
m_Func(1, 0, 0) = 0.85
m_Func(1, 0, 1) = 0.04
m_Func(1, 1, 0) = -0.04
m_Func(1, 1, 1) = 0.85
m_Plus(1, 0) = 0
m_Plus(1, 1) = 1.6

m_Clr(2) = Color.Blue
m_Prob(2) = 0.08
m_Func(2, 0, 0) = 0.2
m_Func(2, 0, 1) = -0.26
m_Func(2, 0, 1) = -0.23
m_Func(2, 1, 1) = 0.22
m_Plus(2, 0) = 0
m_Plus(2, 1) = 1.6

m_Clr(3) = Color.White
m_Prob(3) = 0.06
m_Func(3, 0, 0) = -0.15
m_Func(3, 0, 1) = 0.28
m_Func(3, 1, 0) = 0.26
m_Func(3, 1, 1) = 0.24
m_Plus(3, 0) = 0
m_Plus(3, 1) = 0.44

m_Clr(0) = Color.Lime
m_Clr(1) = Color.Lime
m_Clr(2) = Color.Lime
m_Clr(3) = Color.Lime

MakeFern()
picCanvas.Invalidate()
End Sub```

The MakeFern subroutine draws the fractal into the Bitmap named m_Bm. The form's Paint event handler simply displays the Bitmap.

Subroutine MakeFern starts at point (1, 1) and repeatedly applies randomly selected functions, plotting each point on the Bitmap.

```Private m_Bm As Bitmap

Private Sub MakeFern()
m_Bm = New Bitmap(picCanvas.ClientSize.Width, _
picCanvas.ClientSize.Height)
Dim gr As Graphics = Graphics.FromImage(m_Bm)

gr.Clear(picCanvas.BackColor)

Dim rnd As New Random
Dim func_num As Integer
Dim clr As Color
Dim x As Single = 1
Dim y As Single = 1
Dim x1 As Single
Dim y1 As Single
Dim ix As Integer
Dim iy As Integer
For i As Long = 1 To 100000
Dim num As Double = rnd.NextDouble()
For j As Integer = 0 To 3
num = num - m_Prob(j)
If num <= 0 Then
func_num = j
clr = m_Clr(j)
Exit For
End If
Next j

x1 = x * m_Func(func_num, 0, 0) + y * _
m_Func(func_num, 0, 1) + m_Plus(func_num, 0)
y1 = x * m_Func(func_num, 1, 0) + y * _
m_Func(func_num, 1, 1) + m_Plus(func_num, 1)
x = x1
y = y1

Const W_XMIN As Single = -4
Const W_XMAX As Single = 4
Const W_YMIN As Single = -0.1
Const W_YMAX As Single = 10.1
Const W_WID As Single = W_XMAX - W_XMIN
Const W_HGT As Single = W_YMAX - W_YMIN
ix = (x - W_XMIN) / W_WID * _
picCanvas.ClientSize.Width
iy = (picCanvas.ClientSize.Height - 1) - (y - _
W_YMIN) / W_HGT * picCanvas.ClientSize.Height
If ix >= 0 AndAlso iy >= 0 _
AndAlso ix < picCanvas.ClientSize.Width _
AndAlso iy < picCanvas.ClientSize.Height _
Then
m_Bm.SetPixel(ix, iy, clr)
End If
Next i
End Sub```  Copyright © 1997-2010 Rocky Mountain Computer Consulting, Inc.   All rights reserved.  Updated
